Isolation Pads

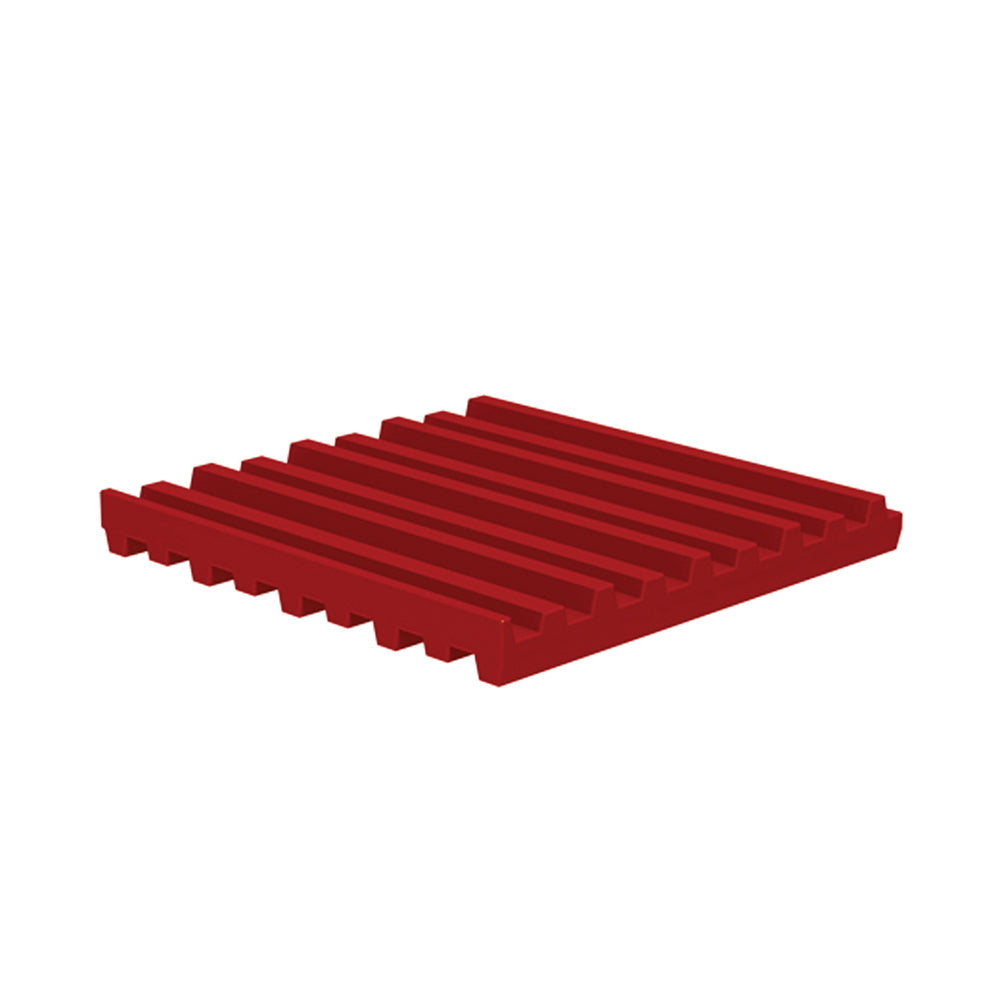

Shearflex Rubber Mounts

Regular price: $2.10 AUD

Load Range: 130 to 750kPa

Color

Product variants

Description

Standard Shearflex pads will provide effective noise and vibration isolation though a load range of 130 to 500kPa. Recommended load for most applications is 250 to 450kPa. Heavy duty Shearflex pads have a useful load range of 200 to 750kPa.

Application

Embelton Shearflex is used where a low-cost pad is required for effective isolation of noise and vibration from equipment with speeds down to the order of 2,000 RPM. Typically used on air conditioners, business machines, transformers, pumps, machine tools, cooling towers, etc.

Datasheet

Download Datasheet

Frequently asked questions

How do I know what my required static deflection is?

A certified acoustic consulatant will need to make an assessment of your site to determine the required static deflection. Embelton offers engineering consultation services. Contact us today.

Can you layer Shearflex?

Shearflex can be used in multiple layers to increase deflection, each layer separated by a 1.5mm metal shim plate. Up to six layers can be used, provided that the height of the stack is not greater than either the length or width.
